Mounting Blocks
Part Number | Engineer Drawing | Solidworks File | Recommended Air Bearing (mm) | Recommended Air Bearing (in) | Recommended Thrust Air Bushing |
MBi0250 | OAV006MB, OAV008MB, OAV010MB | OAV0250IB, OAV0312IB, OAV0375IB | OAVTB16i04 | ||
MBi0500 | OAV013MB | OAV0500IB | |||
MBi0750 | OAV020MB | OAV0750IB | OAVTB32i13 | ||
MBi1000 | OAV025MB | OAV1000IB | |||
MBi1500 | OAV040MB | OAV1500IB | OAVTB60i20, OAVTB60i25 | ||
MBi2000 | OAV050MB | OAV2000IB | |||
MBi3000 | OAV075MB | OAV3000IB | OAVTB100i50 | ||
MBi150i75 | OAVTB150i75 | N/A |

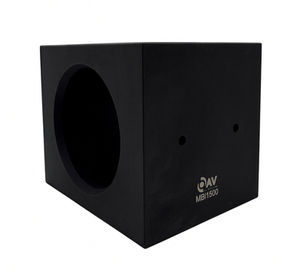

Bushings Face Collar
![Bushings Face Collar](https://static.wixstatic.com/media/f185e8_457400f0931843d59a4ba216117678eb~mv2.gif)
![Bushings Face Collar](https://static.wixstatic.com/media/f185e8_75c5019c9c5e4efa8d39c40611554fc0~mv2.png/v1/fill/w_300,h_169,al_c,q_95,enc_auto/face_collar_gif.png)
Roller Air Bearing mounting BLOCKS
Aluminum mounting blocks for roller air bearings available in both imperial and metric sizes. Made from aerospace quality aluminum and anodized with Mil spec. for ultimate quality.
Part Number | Engineer Drawing | Solidworks File | Recommended Roller Air Bearing (mm) | Recommended Roller Air Bearing (in) |
MB13RL | OAVRL13M | |||
MB20RL | OAVRL20M | |||
MB25RL | OAVRL25M | |||
MB40RL | OAVRL40M | |||
MB50RL | OAVRL50M | |||
MB75RL | OAVRL75M | |||
MB0500RL | OAVRL0500 | |||
MB0750RL |
| OAVRL0750 | ||
MB1000RL |
| OAVRL1000 | ||
MB1500RL |
| OAVRL1500 | ||
MB2000RL |
| OAVRL2000 | ||
MB3000RL |
| OAVRL3000 |
Recomended AIR Quality
Between ISO 8573.1 Quality Classes 3 & 4. Minimum recommendation: dirt particle size at 15 microns, dew point at 37 deg F, oil/vapor content at 5mg per cubic meter. Ideal working condition: dirt particle size at 5 microns, dew point at -4 deg F, oil/vapor content at 1 mg per cubic meter.
